«CORDON.PRO»V
MULTI-TARGET TRAFFIC ENFORCEMENT SYSTEM
Radar-free “Cordon.Pro”V system performs automatic violation capturing and vehicle classification on 2—6 traffic lanes using just a single sensor. It provides average speed measurement on road sections, including the sensor chains for gapless road coverage. The system may be used either on stationary pole bracket or portable tripod — both for average speed measurement and capturing other violations.
Traffic Enforcement Portfolio
1 file(s) 5.72 MB
SCOPE OF APPLICATION
- Economical radar-free solution for automatic traffic enforcement, section control and vehicle classification on up to 6 lanes simultaneously.
- The system may create average speed control chains, covering the entire road length without gaps. Existing previous-generation “Cordon-M” sensors can be utilized for average speed measurement in combination with “Cordon.Pro”V.
- Various Installation Kits allow using the same sensor as stationary or portable (movable) unit, including the average speed measurement in portable mode.
- Automatic number plate recognition (ANPR) of various countries and vehicle classification (cars, trucks and buses) using machine vision technology, with simultaneous search for wanted vehicles.
DESIGN AND OPERATION PRINCIPLE
- “Cordon.Pro”M system can be mounted either on stationary bracket, or on tripod, just like “Cordon-M”. All mounting hardware is interchangeable between these two systems. The setup is performed via Web-interface either remotely, or on installation place, using the mobile PC or other mobile device.
- Average speed control is possible using the tripod mount as well.
- This system benefits from vast reduction of time required for initial setup. The mounting interface includes interactive gauges, displaying the quality of installation along with cues for required correction. Moreover, the system starts capturing only in case if the self-test is completed successfully, and the position is correct. If sensor is misplaced during the operation, the system will stop capturing, and if it’s impossible to correct internally, it will issue the notification via E-mail or SMS.
- The speed measurement is performed indirectly, based on measured time of travel between two sensors. ANPR, speed calculation and making the violation records are performed internally without external processing units.
- The entire road length may be completely covered by a chain of “Cordon.Pro”V sensors, ensuring the gapless speed enforcement.

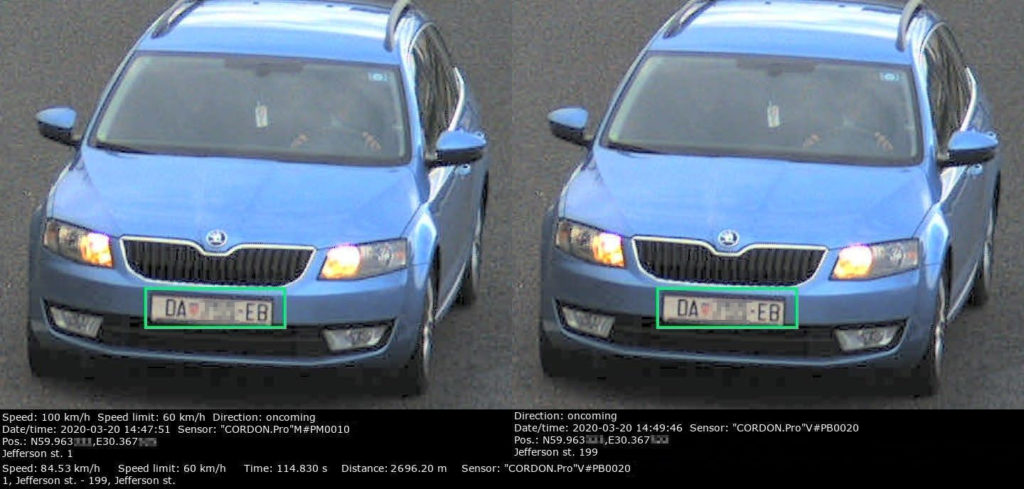

- The system automatically captures the violations within the controlled area and gathers the necessary evidence: photos of the vehicle (general traffic view and close-up) from video camera; recognized license plate; violation flags, date and time of capturing; address; geographic coordinates, violation video etc. The continuous video recording is performed simultaneously.
- The system is equipped with automatic vehicle class recognition system, operating on optical principle without access to any vehicle databases. It determines the proper car class for oncoming traffic with at least 95% accuracy: cars, trucks, buses. Appropriate speed limit is automatically assigned to each car, based on its class. The system automatically detects the forbidden truck traffic either on entire road, or on particular lanes.
FUNCTIONS AND FEATURES
VIOLATION CAPTURING
- Fully automatic operation for traffic enforcement on up to 6 traffic lanes simultaneously in both directions.
- Separate speed limits for cars, trucks and buses.
- Evidence data and video clip recording for each detected violation.
- Internal GPS/GLONASS receiver determines the geographic coordinates of the system and ensures automatic time synchronization with satellite navigation system.
VEHICLE CLASSIFICATION
- The system is equipped with automatic vehicle class recognition system, operating on optical principle without access to any vehicle databases.
- Given the adequate lighting within the controlled area, the system determines the proper car class for oncoming traffic with at least 95% accuracy: cars, trucks, buses.
- Appropriate speed limit is automatically assigned to each vehicle, based on its class.
- With vehicle classification, the system automatically detects the forbidden truck traffic either on entire road, or on particular lanes.
PROTECTION AND SAFETY
- Software and stored data protection against corruption and unauthorized changes.
- Logging of system events and user actions.
- Mechanical shock sensor with real time notifications via E-Mail and SMS.
- Optional armored enclosure ensures protection from handgun and shotgun munition.
TRAFFIC STATISTICS COLLECTION
- Gathering the statistical data on traffic flow properties.
- Plotting the interactive graphs on selected parameters.
- Analysis of captured violations with breaking down by violation types and overspeed amount.
AUTOMATIC NUMBER PLATE RECOGNITION
- Automatic number plate recognition of various countries and vehicle classification (cars, trucks and buses) using machine vision technology with at least 95% success ratio.
- Neural network technology ensures quick adaptation to new license plate formats.
- Ability to check the passing vehicles using the various databases in internal memory, with voice notification for operator and immediate sending the data to Police back-office.
VIDEO MONITORING
- Ability to stream the video in real time using RTSP protocol.
- Automatic recording and storing video clips of road situation to the archive (up to 12 hours of video), ability to search through archive for specified time period.
NIGHT TIME OPERATION
- Internal IR spotlight enables nighttime operation, regardless of roadway lighting conditions.
- Optional external IR spotlight for guaranteed vehicle make and model visibility.
NIGHT TIME OPERATION
- Internal IR spotlight enables nighttime operation, regardless of roadway lighting conditions.
- Optional external IR spotlight for guaranteed vehicle make and model visibility.
TELEMETRY AND DIAGNOSIS
- Self-testing and remote testing features.
- Automatic tracking of system performance with telemetry streaming in real time.
SYSTEM VARIANTS AND OPERATION MODES
“Cordon.Pro”V system supports several different operation and installation modes, depending on the Customer’s requirements and supplied power source and installation kit. For the maximum simplicity of installation process the system utilizes quick setup using the Web-interface with automatic checkup for correct mounting parameters.
STATIONARY MODE

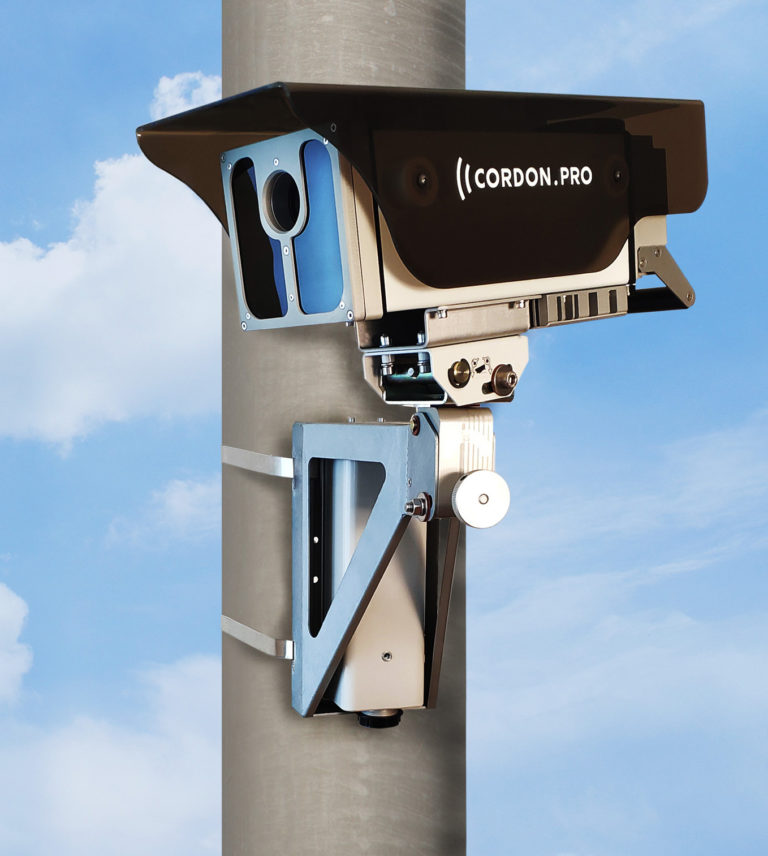

110-220 VAC Power Kit with rotary bracket for installation on any lamp pole and 110-220 VAC mains power supply. Maximum installation height 10 meters. The sensor is installed near the road border or above the road. Rotary quick installation bracket for pole mounting.
BPF Kit includes the custom-designed semi-autonomous power unit which charges the batteries from the city lighting in night time. 6 hours of charging from city lighting at night are enough for autonomous operation during the rest of the day. Rotary bracket for installation on any lamp pole is included.
PORTABLE MODE
On tripod — includes the standard tripod, 12V battery box and tablet PC or laptop. The sensor is installed on the roadside and powered by battery box.
On car roof rails — includes the roof rail bracket, 12V battery box and laptop.
OPTIONAL EQUIPMENT
- Color video camera
- Arctic version
- Various autonomous power sources
- Additional IR spotlights
- Bulletproof enclosure
VIOLATIONS ENFORCEMENT
- Speeding (average) — in combination with another “Cordon.Pro”V or Cordon-M”-family system.
- Movement in the wrong direction on two-way road.
- Movement in the wrong direction on one-way road.
- Movement on reserved bus lane.
- Movement on the roadside.
- Movement on divider lane.
- Movement on pavement or cycle way.
- Driving under the STOP sign without stopping.
- Crossing the continuous road line.
- Truck traffic ban enforcement (on entire road or particular lanes).
SPECIFICATIONS
| PARAMETER | VALUE |
|---|---|
| Time synchronization error in relation to UTC scale | max. ±5 us |
| Power consumption above freezing temperature | up to 25 W |
| Sensor weight | up to 5.7 kg |
| Sensor dimensions | up to 460×180×280 mm |
CERTIFICATES AND WARRANTY
- Warranty period 2 years.
- Period between verifications 2 years.
- Type Approval Certificate ОС.C.33.158.A No.75903 by Federal Agency for Technical Regulation and Metrology of the Russian Federation. Valid till September 18, 2024.
- Eurasian Customs Union Certificate of conformity No. ТС RU C-RU.ME83.B.00002/18. Valid till December 26, 2023.
