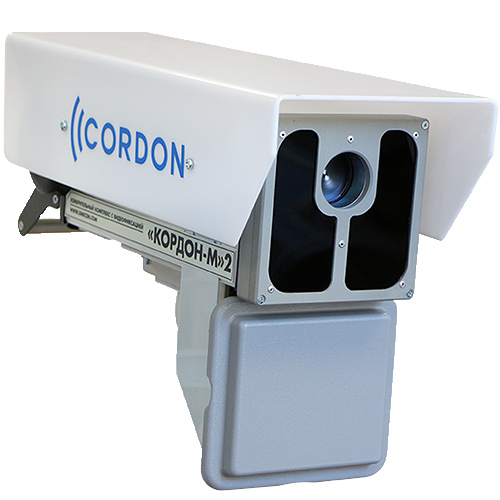

«CORDON-M»
RADAR VIDEO RECORDING SYSTEM
The «CORDON-M» radar system is designed for automatic traffic enforcement and data transfer to the Police back-office.
- Cost-effective solution for controlling narrow roads with 2-6 lanes of traffic (stationary modification) and up to 4 lanes (mobile modification)
- Low power consumption.
- Various installation and power supply options available.
- Ability to use independent power source.
- High resolution video camera.
- License plate recognition system based on neural networks.
Traffic Enforcement Portfolio
DESIGN AND OPERATION PRINCIPLE
The system automatically measures speeds of all vehicles in enforcement zone and records a pair of images for every captured vehicle: wide-angle image of all targets within the camera field of view (with the captured vehicle clearly identified), and a close-up image of the captured vehicle with clearly visible license plate.
The violation data includes the recognized license plate number, measured speed, type of violation (speeding, roadside driving, bus lane driving or driving in wrong direction), movement direction, date and time of violation, speed limit for current road section, name of controlled road section, geographical coordinates, sensor serial number. The system concurrently measures and captures all targets travelling in both directions within the controlled area. The principal feature – license plate recognition is performed throughout the whole controlled area. The archive of video clips and recorded violation data is simultaneously saved to internal storage and can be transferred to Police back office through secure wired or wireless communication lines for further processing.
FUNCTIONS AND FEATURES
VIOLATION CAPTURING
- Fully automatic operation for vehicle control on up to 6 traffic lanes simultaneously in both directions.
- Speed measurement range 2—300 km/h.
- Separate speed limits for different lanes and cars, trucks and buses.
- Evidence data and video clip recording for each detected violation.
- Internal GPS/GLONASS receiver determines the geographic coordinates of the system and ensures automatic time synchronization with satellite navigation system.
VEHICLE CLASSIFICATION
- The system is equipped with automatic vehicle class recognition system, operating on optical principle without access to any vehicle databases.
- Given the adequate lighting within the controlled area, the system determines the proper car class for oncoming traffic with at least 95% accuracy: cars, trucks, buses.
- Appropriate speed limit is automatically assigned to each car, based on its class.
- With vehicle classification, the system automatically detects the forbidden truck traffic either on entire road, or on particular lanes.
PROTECTION AND SAFETY
- Software and stored data protection against corruption and unauthorized changes.
- Logging of system events and user actions.
- Mechanical shock sensor with real time notifications via E-Mail and SMS.
- Optional armored enclosure ensures protection from handgun and shotgun munition.
TRAFFIC STATISTICS COLLECTION
- Gathering the statistical data on traffic flow properties.
- Plotting the interactive graphs on selected parameters.
- Analysis of captured violations with breaking down by violation types and overspeed amount.
AUTOMATIC NUMBER PLATE RECOGNITION
- Automatic number plate recognition of various countries and vehicle classification (cars, trucks and buses) using machine vision technology with at least 95% success ratio.
- Neural network technology ensures quick adaptation to new license plate formats.
- Ability to check the passing vehicles using the various databases in internal memory, with voice notification for operator and immediate sending the data to Police back-office.
- Special “Intercept” working mode for capturing the vehicles with missing or unreadable license plates.
DATA TRANSMISSION
- Wireless data transfer (2G, 3G or 4G) over the secure Virtual Private Network (VPN) using the internal cellular module.
- Automatic switching to backup data channels (4G, Wi-Fi) in case of main channel malfunction.
- Ability to stream the data to different servers simultaneously.
VIDEO MONITORING
- Ability to stream the video in real time using RTSP protocol.
- Automatic recording and storing video clips of road situation to the archive (up to 24 hours of video), ability to search through archive for specified time period.
TELEMETRY AND DIAGNOSIS
- Self-testing and remote testing features.
- Automatic tracking of system performance with telemetry streaming in real time.
NIGHT TIME OPERATION
- Internal IR spotlight enables nighttime operation, regardless of roadway lighting conditions.
- Optional external IR spotlight for guaranteed vehicle make and model visibility.
INSTALLATION OPTIONS
The system has various installation and power supply options which may be used depending on tasks and technical capabilities on desired installation places.
STATIONARY

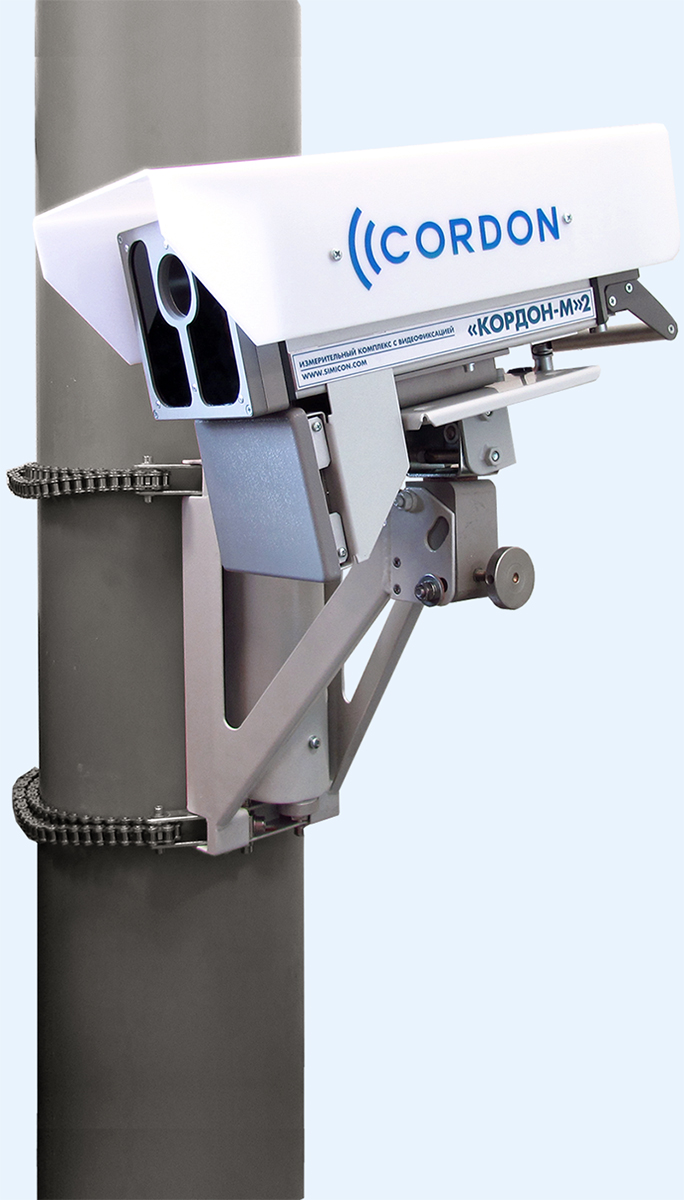

The system is installed at height of up to 10 meters using the mounting bracket on any lighting pole or similar support. The power comes from 110-220 V mains supply. The installation may take place either above the road or on the roadside.
MOBILE

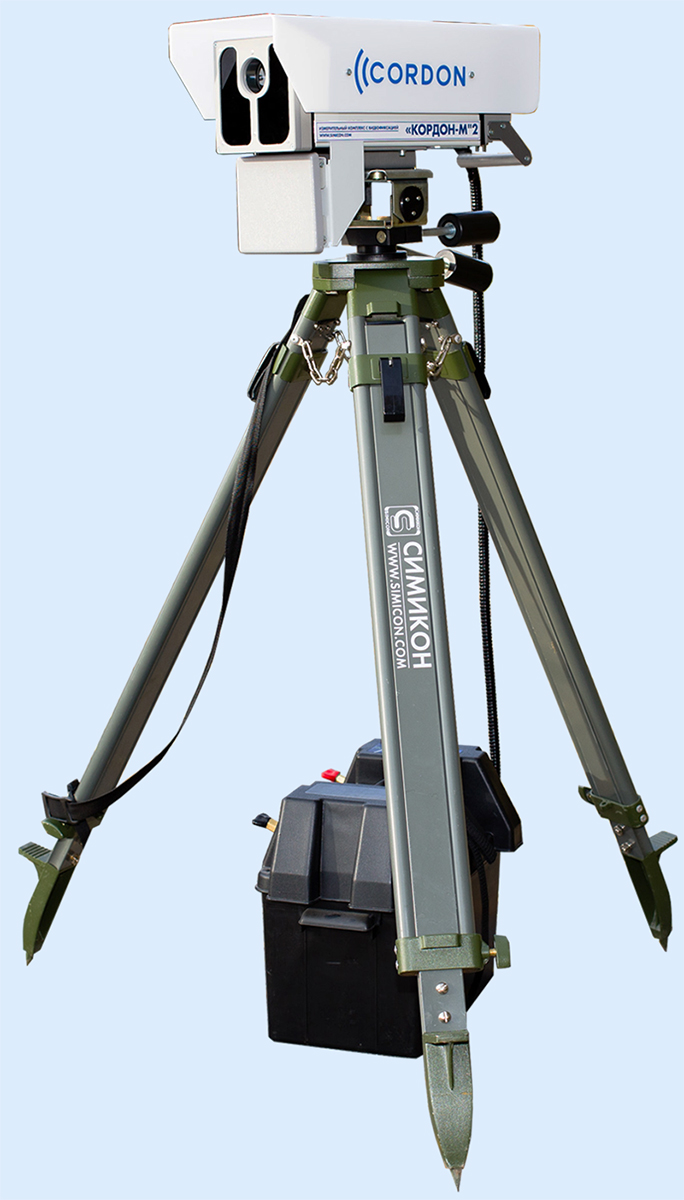

The system is installed on a tripod at height of about 1.5 meters (breast height) at the roadside. The system is powered from battery box placed near the tripod and can be quickly transferred to another installation place.
POWER SOURCE
The system is installed on the roadside at height of 3-5 meters using the mounting bracket on any lighting pole or similar support. The mains power supply is not required, as the system is powered by replaceable battery in tamper-proof housing.
SPECIFICATIONS
| PARAMETER | VALUE |
|---|---|
| Speed measurement range | 2—300 km/h |
| Speed measurement accuracy | ± 2 km/h |
| Operating frequency | 24.15 ± 0.10 GHz |
| Time synchronization error in relation to UTC scale | ± 0.001 s |
| Maximum power consumption | 50 W |
| Sensor weight | up to 6 kg |
| Size (sensor) | up to 460×180×280 mm |
CERTIFICATES AND WARRANTY
- Warranty period 2 years.
- Period between verifications 2 years.
- Type Approval Certificate RU.C.28.002.A No.58736/1 by Federal Agency for Technical Regulation and Metrology of the Russian Federation. The validity of the certificate was extended by order of the Federal Agency No. 438 on 02/28/20 until May 2025.
- Certificate of conformity No. РОСС RU.ME83.H00336 by Gosstandart of Russia. Valid till June 7, 2021.
- Eurasian Customs Union Certificate of conformity No. ЕАЭС RU C-RU.ПХ01.B.00498/20. Valid till February 27, 2025.
- Type Approval Certificate No. HR B-1-1030 State Bureau of Metrology, Republic of Croatia. Valid till June 13, 2027.
- Type Approval Certificate No. TSK 162/20 – 024 by Slovak Metrology Institute, Slovak Republic. Valid till January 11, 2030.
- Certificate of compliance to enclosure protection level IK08 No. LVD 80170042
